Zeb ISPST4CH
Features

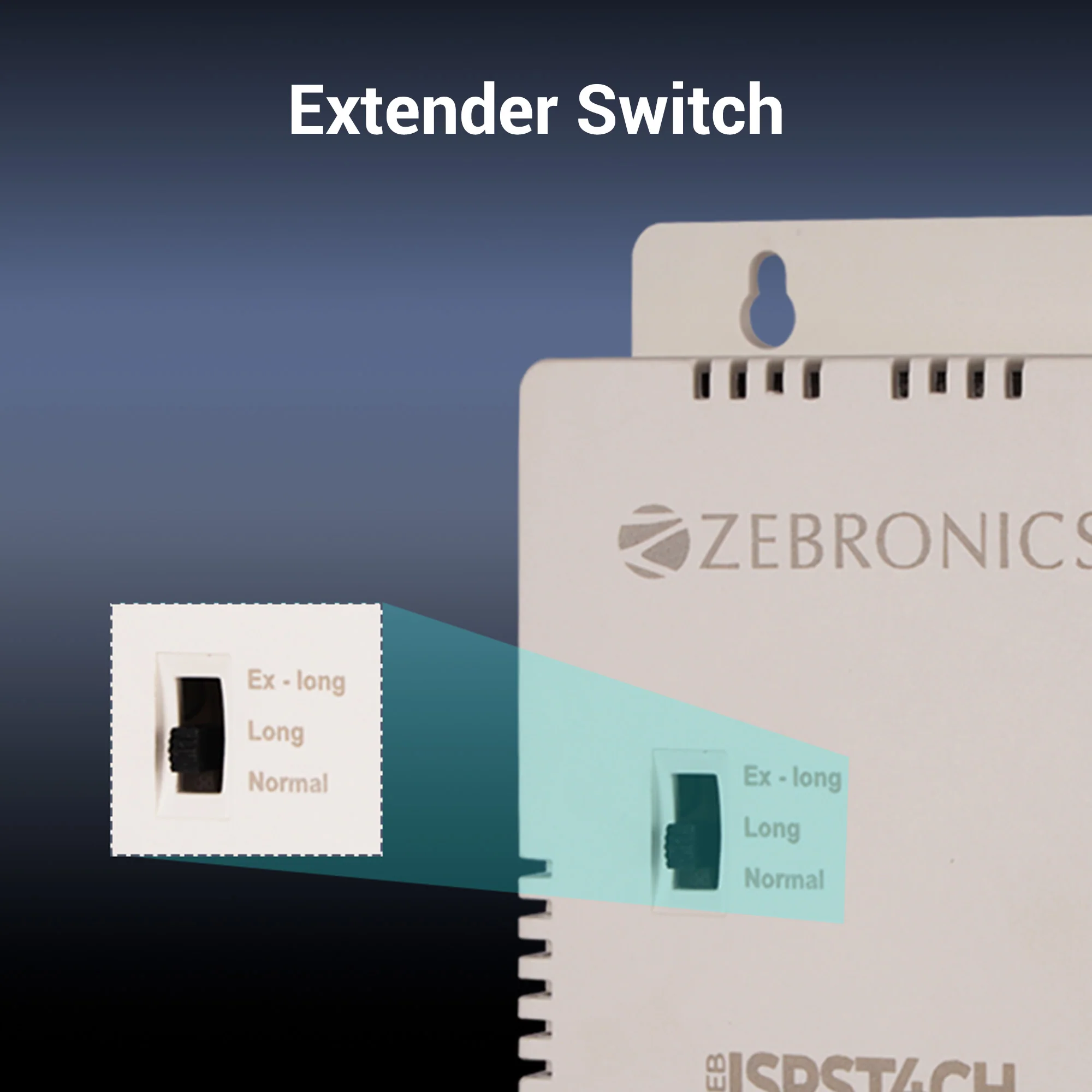

| Extender Switch | |

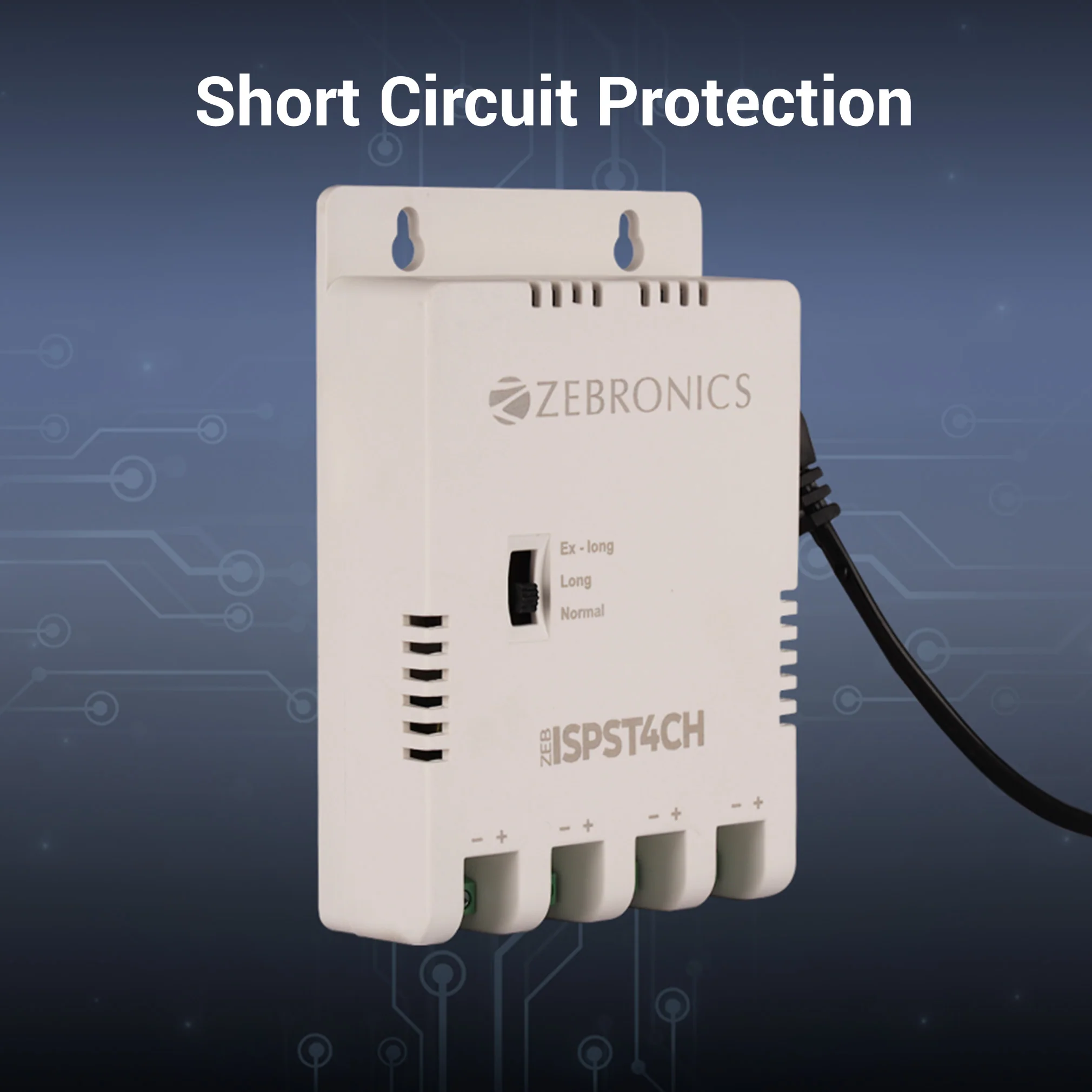

| Short circuit protection | |

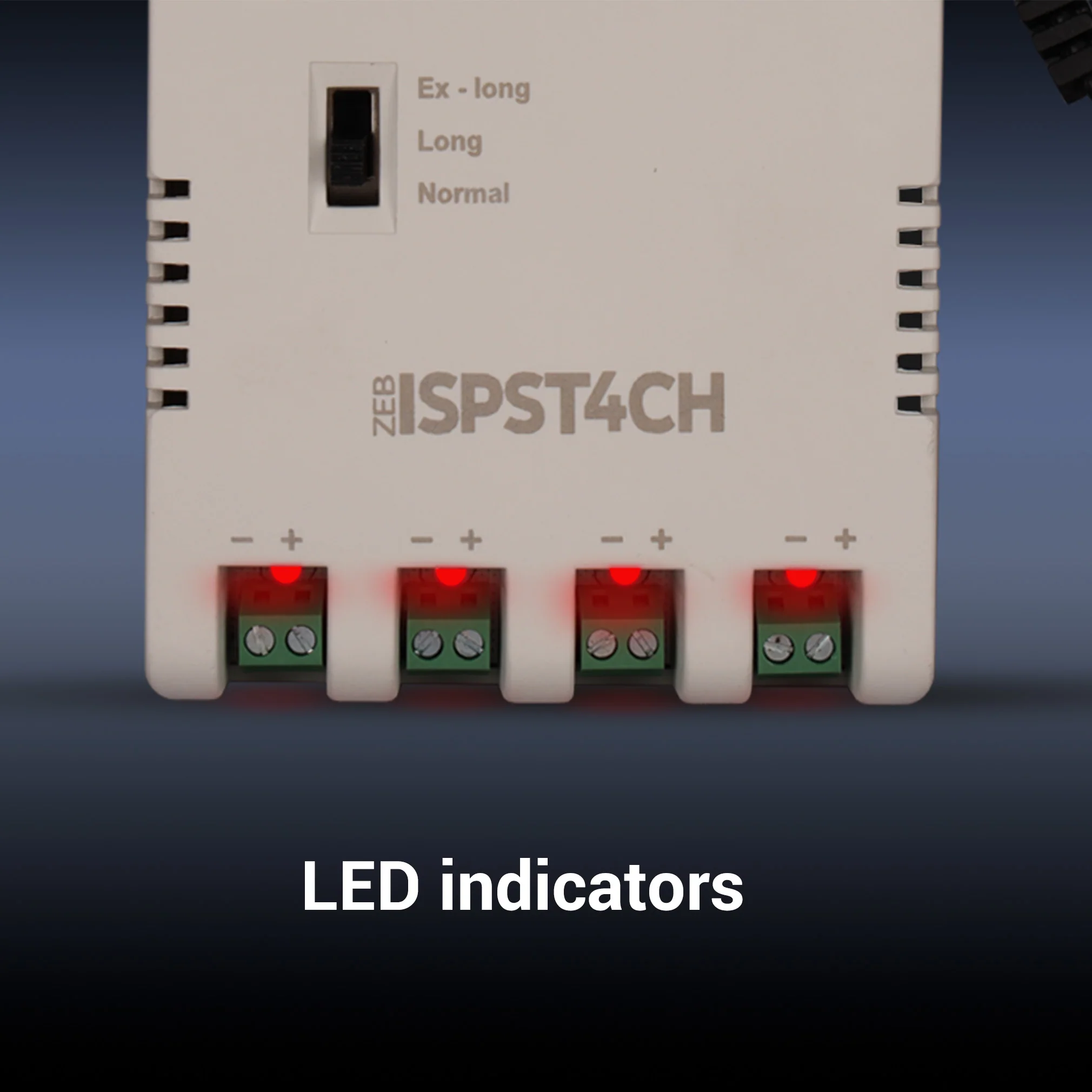

| LED indicators | |

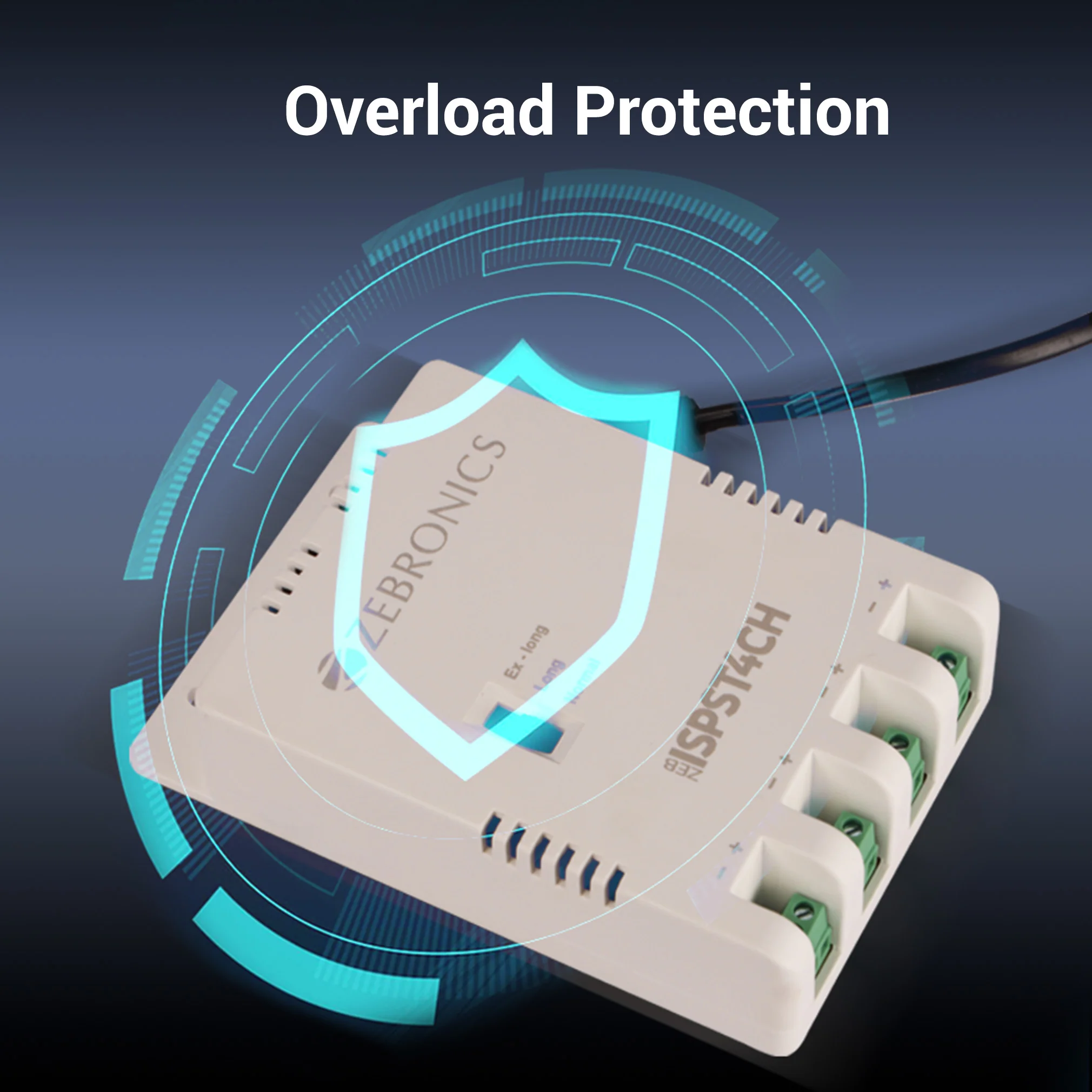

| Overload Protection | |

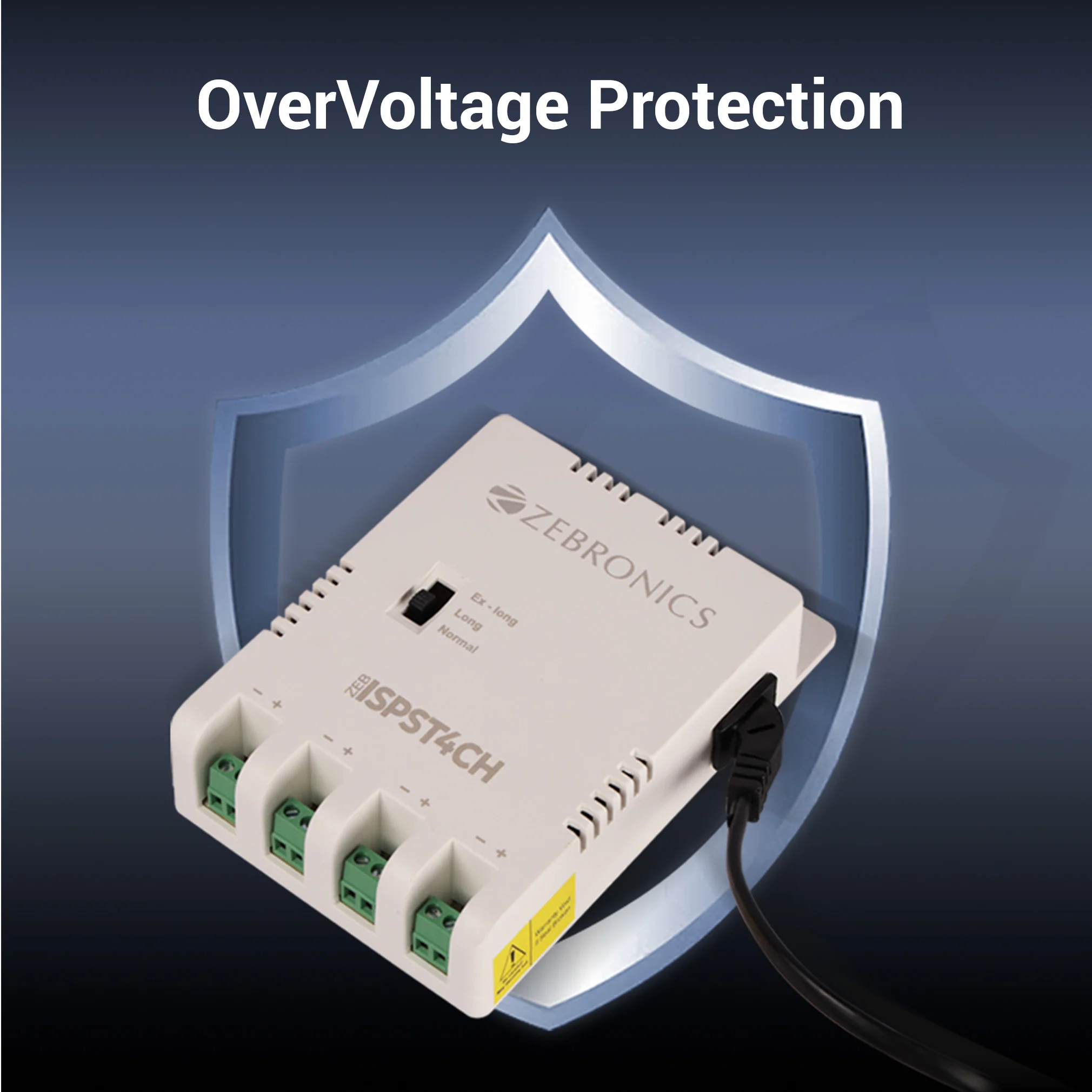

| OverVoltage Protection | |

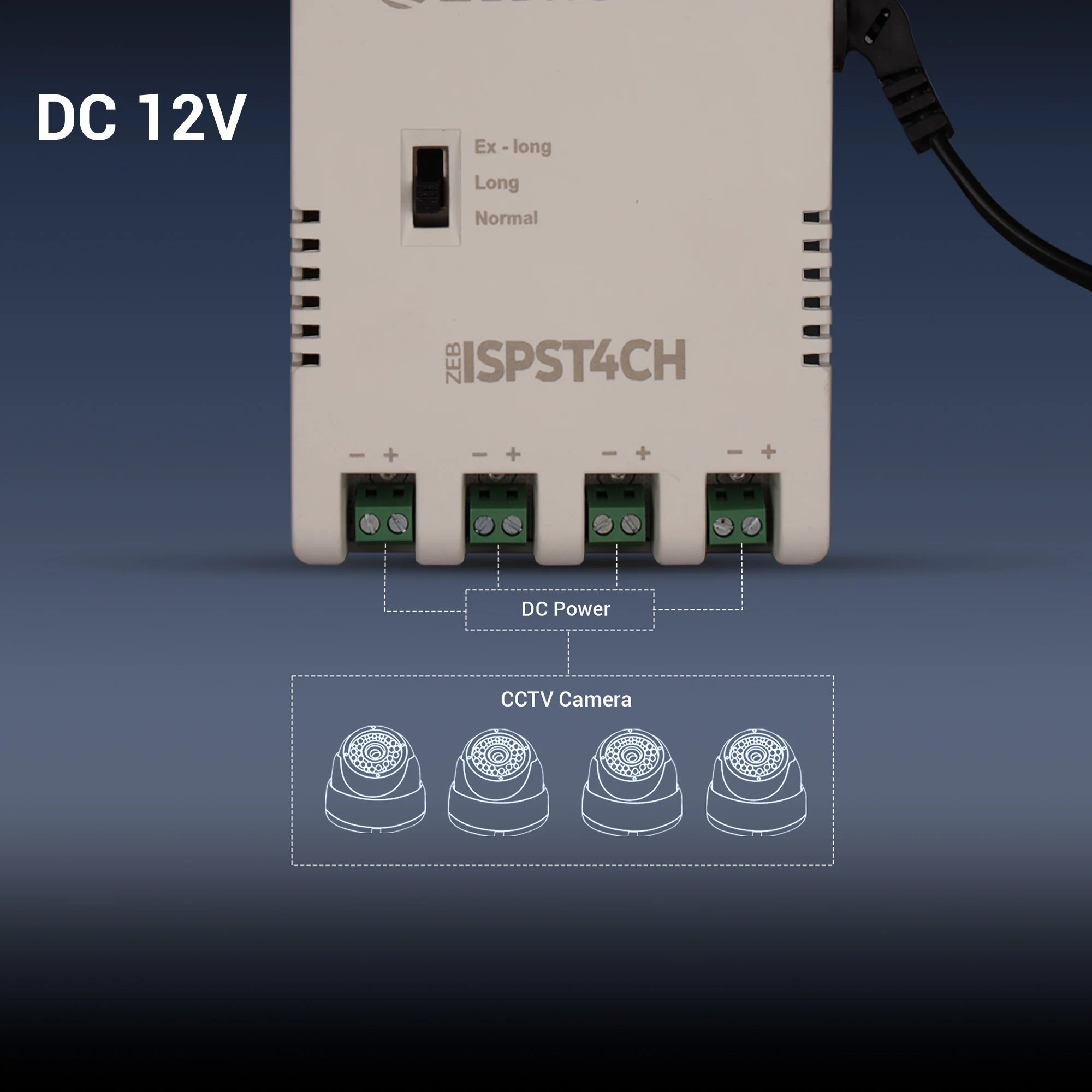

| DC 12V |
Specifications
| Input Voltage range | AC120V-265V | |
| |
Input Frequency | 50/60HZ |
| Input Current | 0.5A | |
| Output Voltage | DC12V | |
| Ripple | <500mV | |
| Hold up Time | 10 ms |
|
| Turn-on Delay time | 30 ms | |
| Rise and Fall time | 30 ms | |
| Over Load Protection | Yes | |
| Over Voltage Protection | Yes | |
| Short circuit Protection | Yes | |
| Over Temperature Protection | Yes | |
| Operation Temperature | 0° C to 45° C | |
| Storage Temperature | 0°C to 55° C | |
| Operation Humidity | 10% -- 90% non condensing | |
| Storage Humidity | 10% -- 90% non condensing | |
| Input of the Power Supply Unit | 2 Pin India Power cord - non detachable | |
| Output Terminals of the Power Supply Unit | 4 Pairs of Terminals output connector | |
| LED Indicators | 4 | |
| Enclosure Materials | Plastic Body | |
| Net Weight with power cord | 285 g | |
| Product Dimension (W x D x H) | 9.5 x 3.5 x 14.3 cm | |
| Color Box Dimension (W x D x H) | 19.4 x 4.7 x 12 cm | |
| Country of Origin | India | |
| Package Contents | ||
| Power Supply | 1 U |
