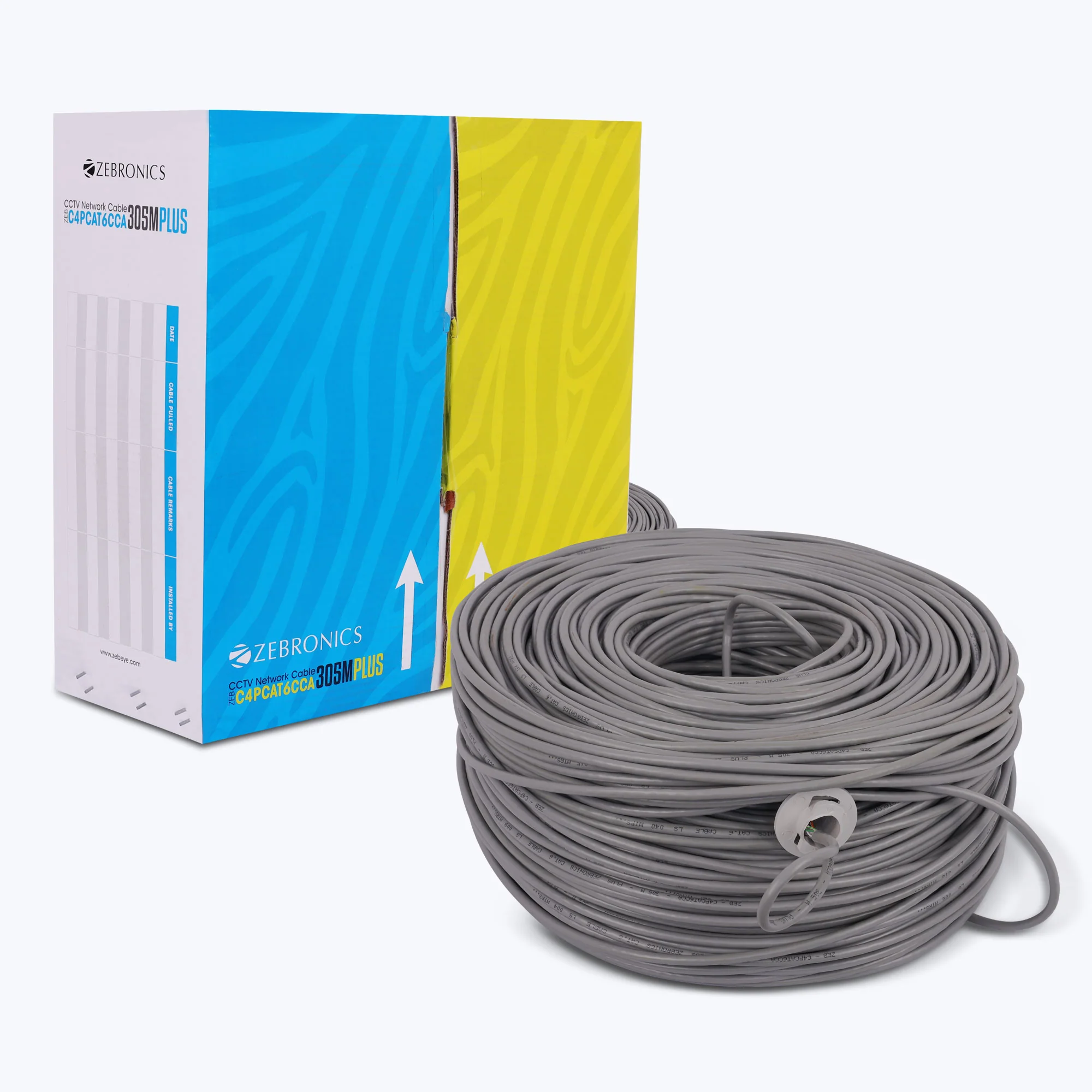

Zeb C4PCAT6CCA-305M-PLUS
Specifications
| Model Name |
ZEB-C4PCAT6CCA-305M-PLUS | |
| No. of wires |
4 pairs | |
| Cable length |
305 meter | |
| Conductor material |
24 AWG Solid Bare CCA | |
| Construction diameter |
0.508 mm | |
| Insulation material |
PE | |
| Insulation thickness |
0.2mm | |
| Insulation diameter |
0.90mm | |
| Jacket material |
PVC | |
| Jacket thickness |
0.65mm | |
| Jacket diameter |
6.1mm | |
| Jacket color |
Gray | |
| Separator |
PE Central cross separator | |
| Conductor resistance |
< 93.8Ω/km at 20°C | |
| Weight |
9.94Kg | |
| Country of Origin |
India | |
| Mechanical Properties | ||
| Operation Temperature |
-10°C to +60°C | |
| Storage Temperature |
0°C to +50°C | |
| Bending Radius |
<25.4 mm at -20°C to ±1°C | |
| Pulling Force | 8 Kgs |
$19.66
Original: $65.54
-70%Zeb C4PCAT6CCA-305M-PLUS—
$65.54
$19.66Product Information
