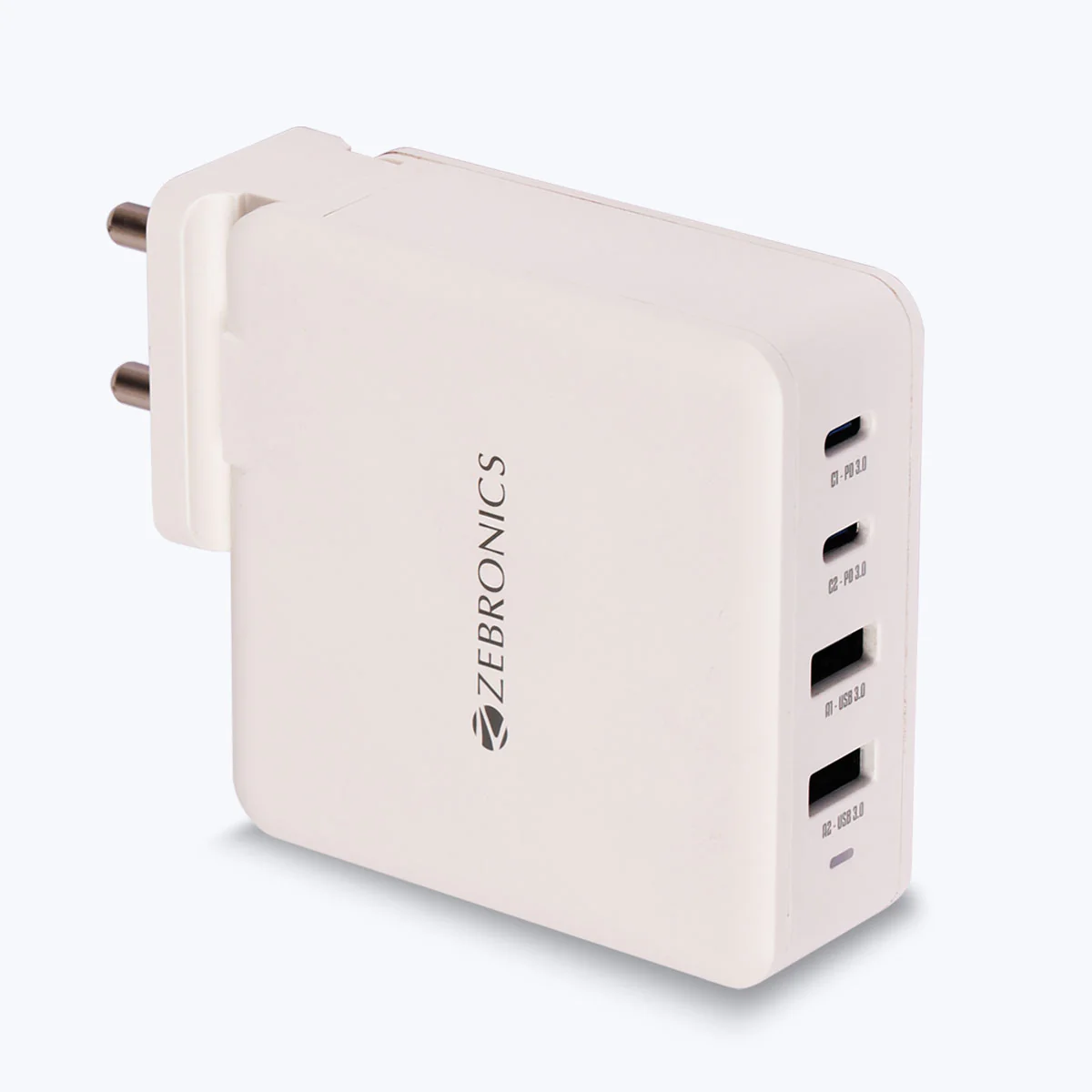

100W GaN (Zeb-RC42A)
Features
| 100W Max. PD 3.0 - C1 / C2: 5V 3A , 9V 3A , 12V 3A , 15V 3A , 20V 5A | |
| 30W Max. USB 3.0 - A1 / A2 : 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A | |
| Over Current & short circuit Protection | |
| Less Ripple | |
| High Efficiency | |
| Auto Self Recovery | |
| Wide input range | |
| Compatible With Laptop/Mobile/Tablet |
Specifications
| Input Voltage |
100-240Vac, 50/60Hz | |
| Max Output |
PD 3.0 - C1 / C2 : 5V 3A , 9V 3A , 12V 3A , 15V 3A , 20V 5A 100W Max. USB 3.0 - A1 / A2 : 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A 30W Max. |
|
| Power Split-up |
||
| Single Port |
C1 : 100W (Max.) C2 : 100W (Max.) A1 : 30W (Max.) A2 : 30W (Max.) |
|
| Dual Ports |
C1 + C2 : 65W + 30W (Max.) A1 + A2 : 7.5W + 7.5W (Max.) C1 + A1 : 65W + 30W (Max.) C2 + A1 : 65W + 30W (Max.) C2 + A2 : 65W + 30W (Max.) C1 + A2 : 65W + 30W (Max.) |
|
| Three Ports |
C1 + C2 + A1 : 45W + 30W + 18W (Max.) C1 + C2 + A2 : 45W + 30W + 18W (Max.) C1 + A1 + A2 : 65W + 7.5W + 7.5W (Max.) C2 + A1 + A2 : 65W + 7.5W + 7.5W (Max.) |
|
| Four Ports |
C1 + C2 + A1 + A2 : 45W + 30W + 7.5W + 7.5W (Max.) | |
| No. Of USB Ports |
2 x PD 3.0 / 2 x USB 3.0 | |
| Product Dimension | 7.5 x 10.2 x 3 cm (W x D x H) | |
| Net.Weight |
240g | |
| Country of Origin |
Peopleās Republic of China | |
|
||
| GaN Charger | 1U |
