Zeb MLS755

Features

	Micro load UPS. Specially made for the security and surveillance CCTV /Broadcast studio Medical equipment
	Wide Input Range
	ZEB Micro Load Sense system, Microprocessor based output load sensing feature, to sense micro power consumption devices
	Backup of upto 3h 45min* for micro power consumption devices
	Excellent microprocessor control guarantees high reliability
	Advanced 3 Tier battery management system, prolongs battery life by more than 30%.
	Made for extreme Indian Conditions.
	Rogue Equipment Connection proof – can adapt to Generators /Inverters having poor power factor as well as obsolete square wave output.

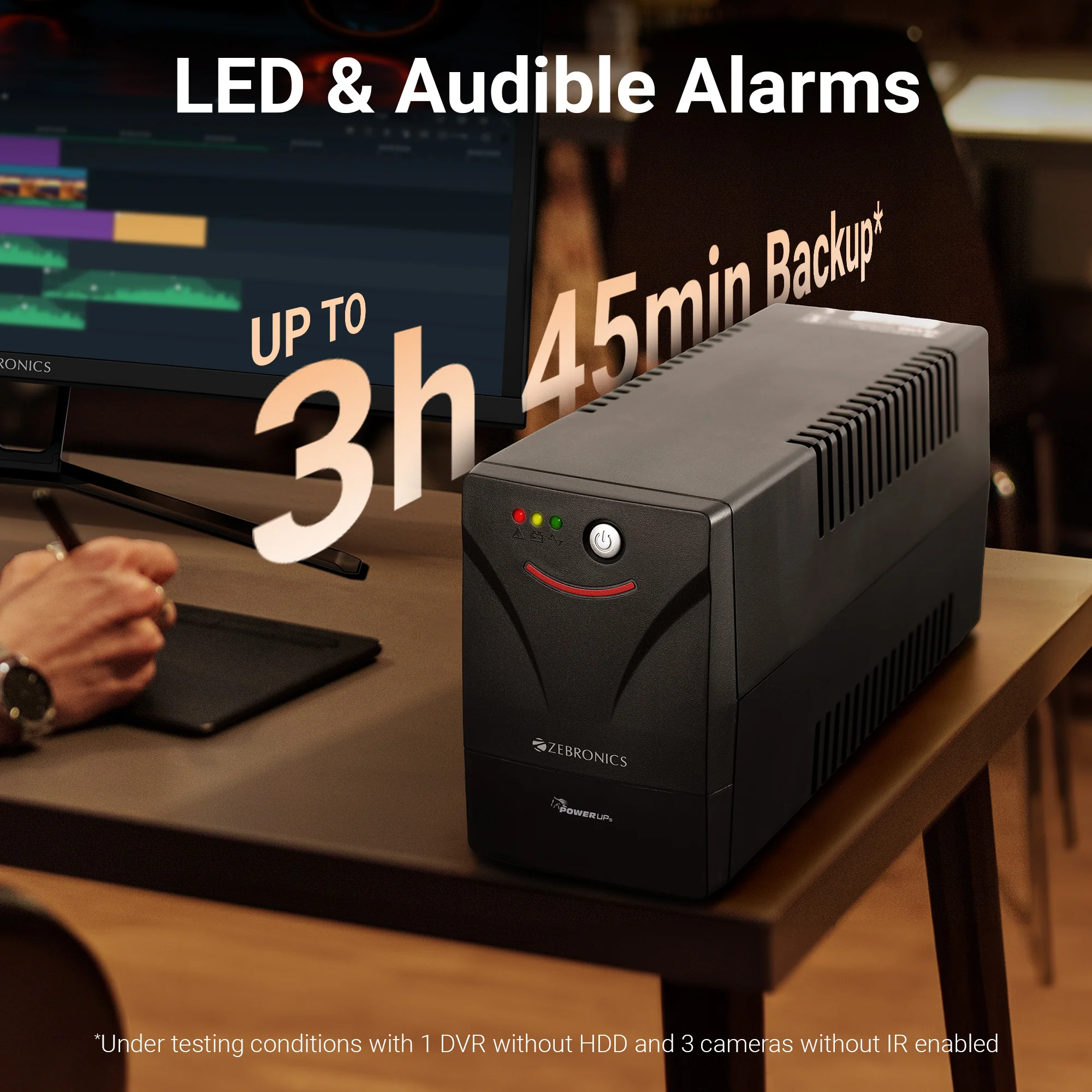

	LED & Audible alarms for instant alert signals.
	Line interactive UPS

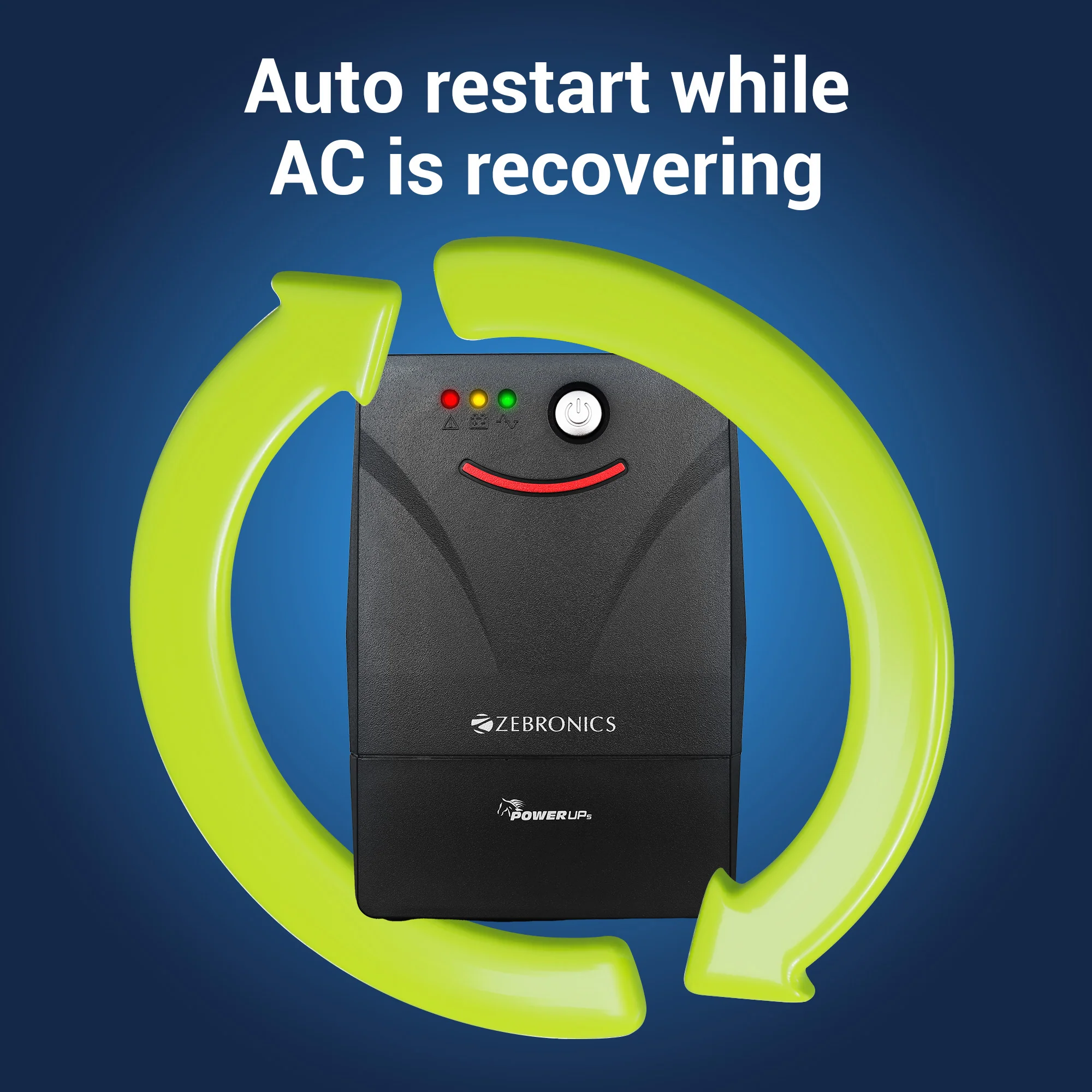

	Auto restart while AC is recovering
	Double Boost

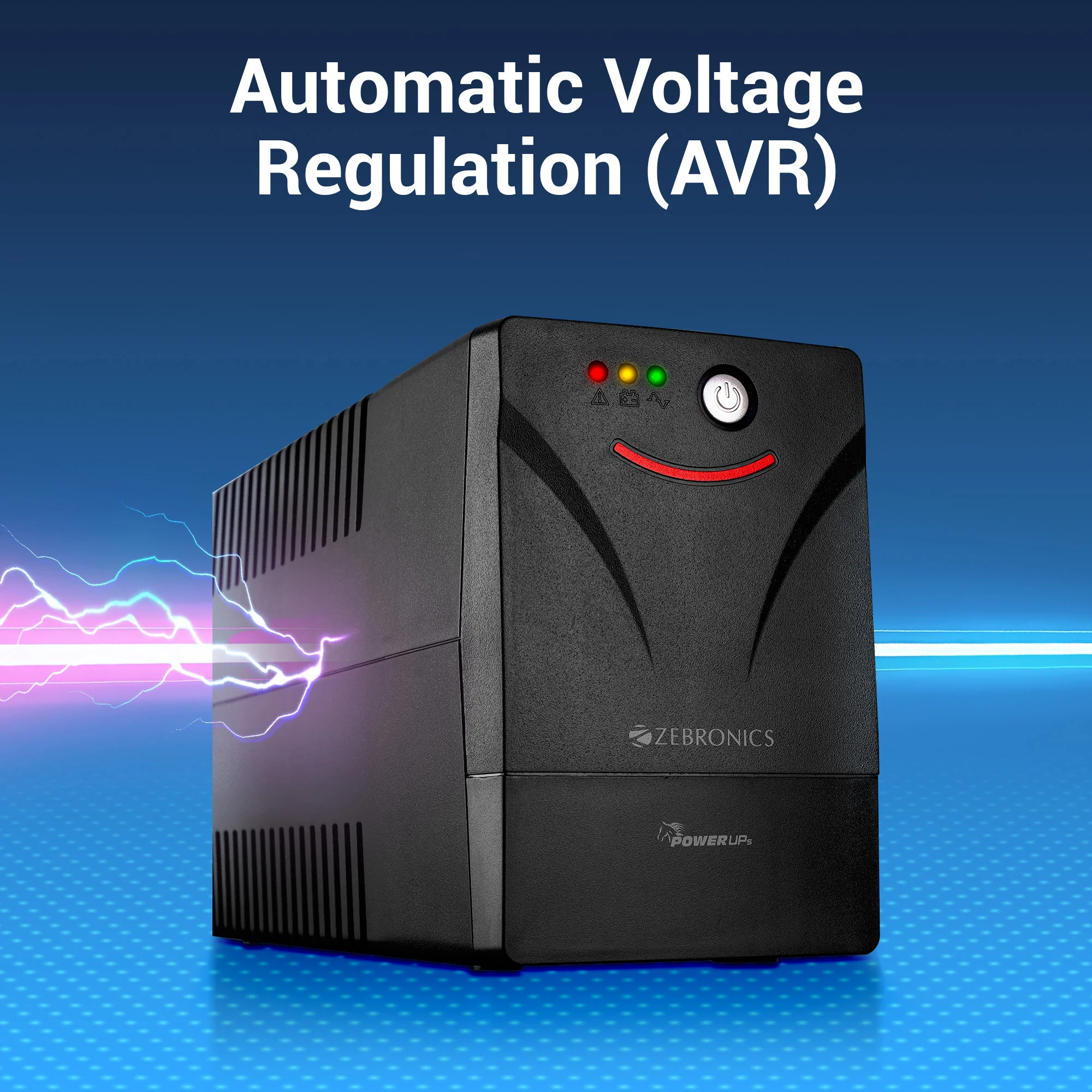

	Automatic Voltage Regulation (AVR)
	* Under testing conditions with 1 DVR without HDD and 3 cameras without IR enabled

Specifications

	Capacity
	(VA/W)	600VA/360W
	Input
	Nominal Voltage	220-240 VAC
	Voltage range	140-300 VAC
	Frequency	50/60 Hz
	Plug Type	3 Pin Plug
	Input Protection	Internal Fuse
	Output
	Voltage Range (AC mode)	230VAC ± 10 %
	Voltage Range (Batt. Mode)	230VAC ± 10 %
	Frequency Range (Batt. Mode)	50/60Hz ±1%
	Transfer Time	4-8ms
	Waveform	Simulated Sine Wave
	No. of Output Sockets	3
	Protections	Overload, Short Circuit, Over Discharge & Over Charge
	Battery
	Battery type	12V  7Ah x 1 nos
	Charging  Current	1A
	Recharge Time	6-8h to charge 90% (after complete discharge)
	Indicators
	No. Of LEDs	3 LED
	AC Mode	Green LED Glows
	Battery mode	Orange LED blinks
	Fault Mode	Red LED Glow
	Alarm
	Battery mode	Beeping every 10 Seconds
	Low battery	Beeping every 1 Second
	Overload	Beeping every 0.5 second
	Fault	Continuous Beeping
	Physical

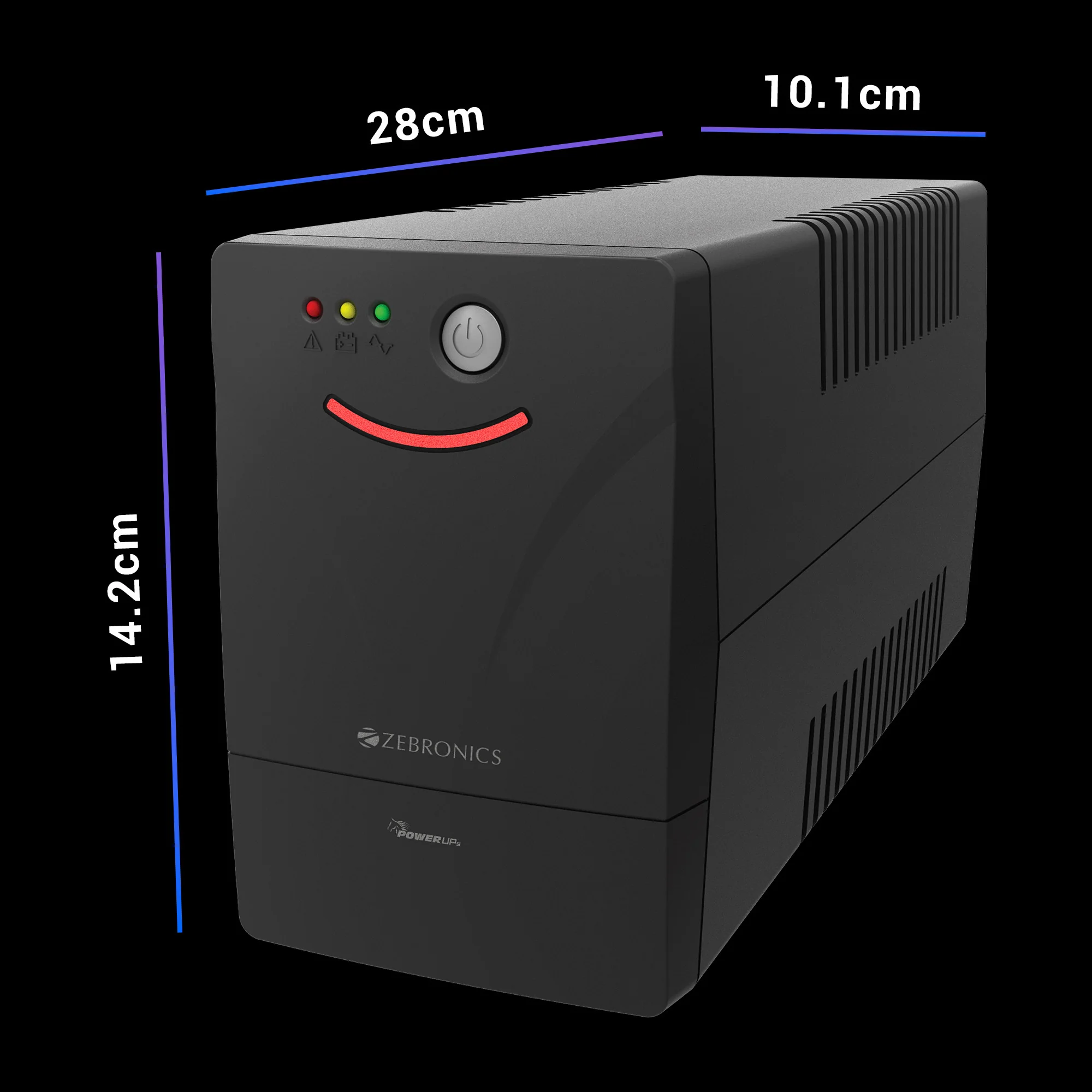

	Dimension (W x D x H)	10.5 x 27.6 x 14.4 cm
	Net Weight	3.9 kg
	Package Dimension (W x D x H)	32.6 x 14.2 x 21.3 cm
	Environmental Factors
	Operational Temperature	0-40⁰C
	Noise Level	< 45dB
	Country of Origin	China
	Package Contents
	UPS	1 U
	QR Code Guide	1 U
	Fuse	1 U

* Load conditions apply. CCTV surveillance system is built up with a DVR , Multi point Power supply, and the Camera array along with the distribution cable ,
all the above contribute to the main power load on the UPS , hence the Backup time varies according to system setup , make and efficiency of each
component in the system. Also the advanced Battery management system protects the full system which has an effect on the back up time.
Our results are based on lab test on system having DVR & 3 IR cameras
