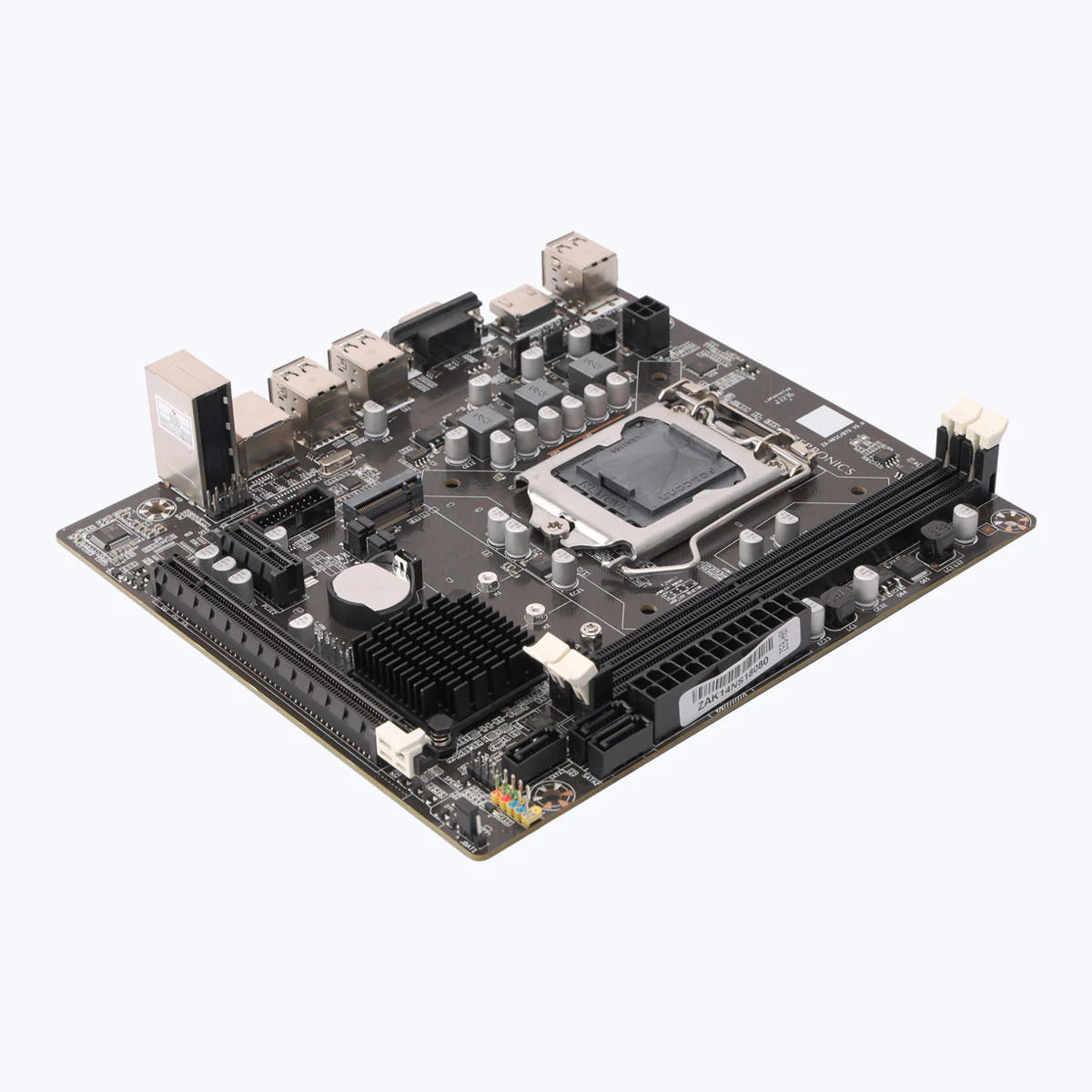

Zeb H61M2 - LGA 1155 Socket
Specifications
| Supported CPU |
Intel Pentium/Celeron/Core i3, i5, i7 Series Processors in LGA 1155 | |
| Chipset |
Intel H61/H67 | |
| Memory Supported |
2nos DDR3 Dual channel RAM slots Memory up to 16GB Supports dual channel DDR3 1066/1333/1600MHz memory |
|
| BIOS |
AMI BIOS | |
| I/O Interface |
1 x HDMI port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio | |
| Onboard Interface |
1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 6 x USB 2.0 Ports, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors, 3 x SATA II Ports, 1 x 3pin CMOS Header, m.2 Slot |
|
| Integrated Sound |
With 6-Channel HD Audio Codec onboard | |
| Integrated LAN |
Supports Realtek 8106E 10/100 Mbps | |
| Expansion Slot |
1 x PCI Express 2.0 x16 size slot, 1 x PCI Express 2.0 x1 size slot | |
| Form Factor |
Micro-ATX | |
| Country of Origin | People's Republic of China |
$52.01
