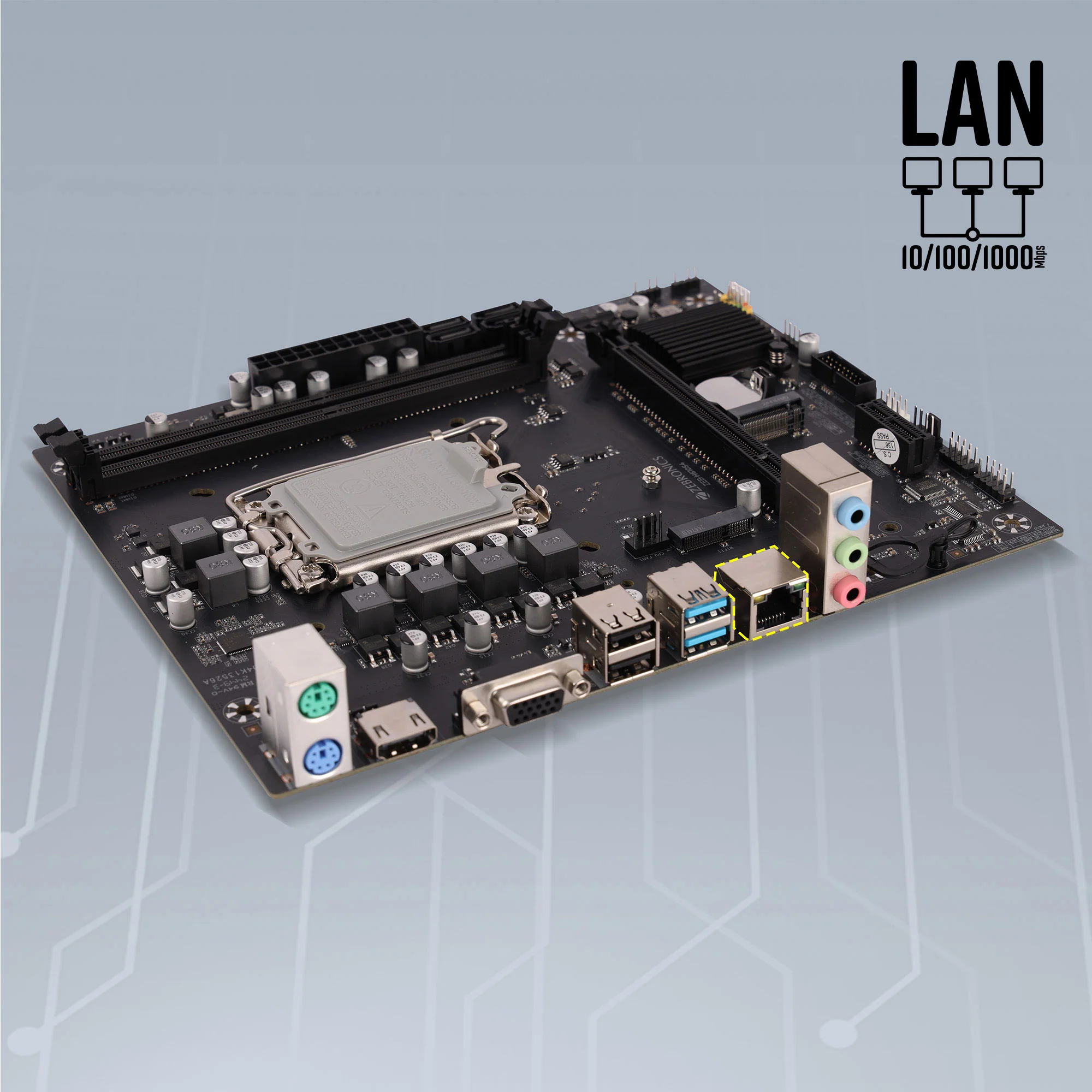

Zeb H610S4 - LGA 1700 SOCKET

Specifications

	Supported CPU*	Intel Celeron / Pentium / i3 / i5 / i7 / i9 12th, 13th & 14th   Generation Series Processor in LGA 1700
	Chipset	Intel H610
	Memory Supported	2 x DDR4 Memory Slots Memory up to 64GB  Supports  DDR4 2133/2666/3200 MHz Memory
	BIOS	AMI BIOS
	I/O Interface	1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Ports, 2 x USB 3.2 Ports,  1 x RJ45 Port, 1 x 3-in-1 Audio Jacks, 1 x PS/2 for Keyboard,  1 x PS/2 for Mouse
	Onboard Interface	1x 24 Pin ATX Power Connector, 1 x 8 Pin ATX Power Connector,  1 x USB 3.0 Connector, 1 x USB 2.0 Connector, 1 x Front Panel Connector,  1 x Front Audio Connector, 1 x CPU Fan Connector, 1 x SYS Fan Connector,  1 x COM Port Connector, 1 x SPK Connector, 2 x LED Header,   4 x SATA 3.0 Ports
	ntegrated Sound	With 5.1-Channel Audio
	Integrated LAN	Supports RTL8111H 10/100/1000 Mbps Ethernet LAN
	Expansion Slot	1 x PCI Express 4.0 x16 Slot, 1 x PCI Express x1 slot,  1x NVMe M.2 Slot, 1 x M.2 for WIFI Module
	Form Factor	Micro-ATX
	Net Dimension(W x H)	18 x 22 cm
	Country of Origin	People’s Republic of China
	Package contents
	ZEB-H610S4 Motherboard	1 U
	SATA Cable	1 U
	I/O Backplate	1 U
	Driver Disc	1 U
	User Manual	1 U

**When using a processor exceeding 95 Watts, the device may not achieve peak performance
