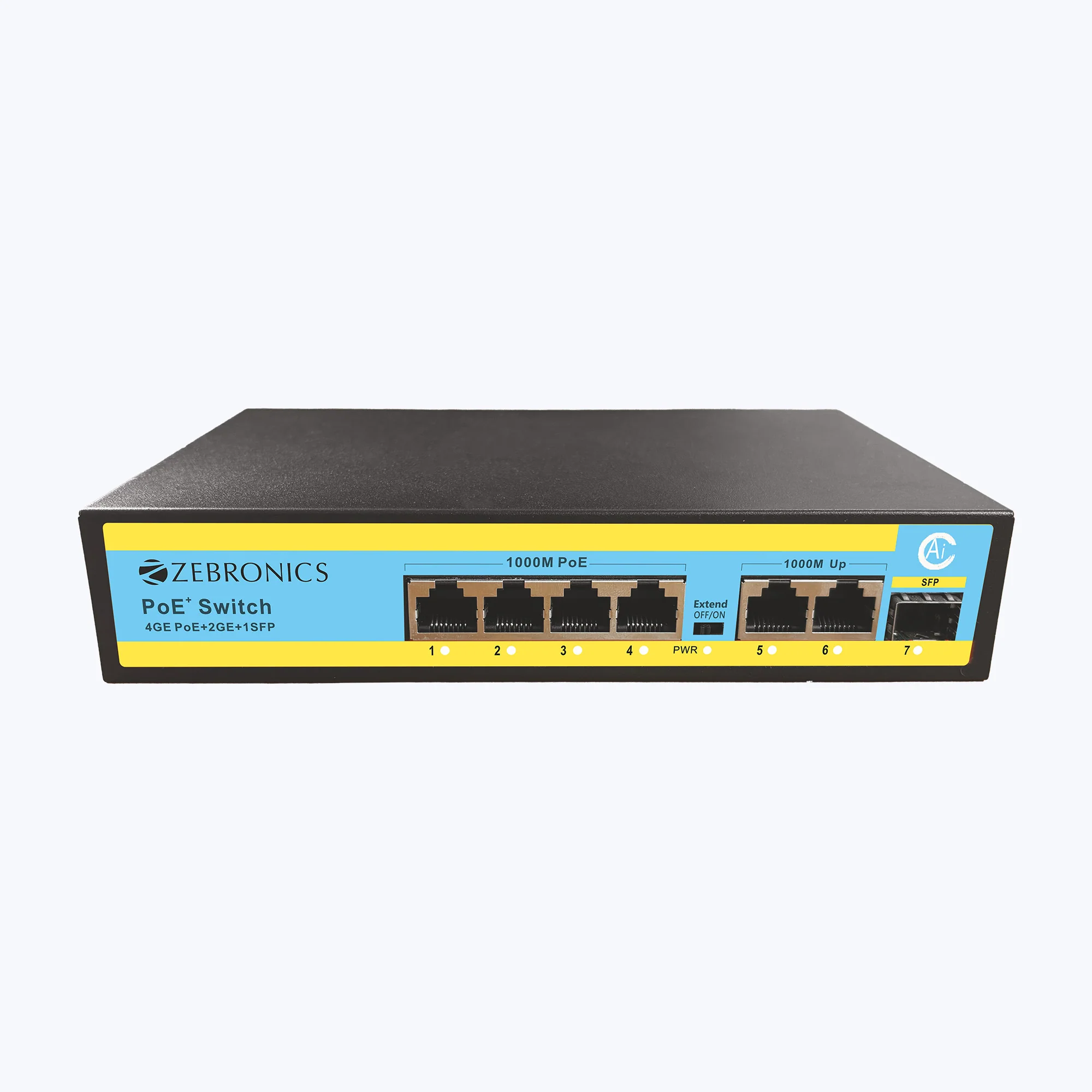

Zeb 4PG2UG1UF 65 - 4 Port POE Switch
Features
| 4 Self Adaptive PoE Ports | |
| Dual Gigabit Uplink Ports | |
| SFP Port | |
| 65W Output (Max.) | |
| Upto 30W Per Port | |
| AI Watchdog Function | |
| High Data Rate | |
| Wide Compatibility | |
| Short Circuit Protection | |
| Anti Interference Capability | |
| Lightning & Surge Protection | |
| Dynamic Power Control |
Specifications
| Connector Type | 4 Ports 1000M PoE + 2 Ports 1000M Ethernet Uplink + 1 1000M SFP Port | |
| Network Protocols | IEEE802.3/802.3u, IEEE802.3x, IEEE802.3ab | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self Adaptive Power Pin Assignment : MODE A [1/2(+), 3/6(-)] |
|
| Network Media | 10BASE-T: <250 meters 100BASE-TX: <100 meters 1000BASE-T: <100 meters |
|
| Power Supply | Input: AC100-240V, 50/60Hz Output: 30W Per Port Power Budget: 65W |
|
| Performance Specification | Bandwidth: 14Gbps MAC: 2K Packet Buffer Memory: 2Mbits 10M Packet Forwarding Rate: 14880pps/port 100M Packet Forwarding Rate: 148800pps/port 1000M Packet Forwarding Rate: 1488000pps/port |
|
| LED Indicator | Power (Red): Lit - Powered, Unlit - No Power Ethernet (Green) : Flash - Data Transmit, Unlit - Disconnect |
|
| Working Environment | Operating Temperature: -10°C ~ 55°C Storage Temperature: -20°C ~ 70°C Operating Humidity: Max 20 ~ 95% (Non-Condensation) Storage Humidity: Max 20 ~ 95% (Non-Condensation) |
|
| Physical Parameter | ||
| Product Dimension (W x D x H) | Product Dimension (W x D x H) : 19 x 12.5 x 3.8cm | |
| Net. Weight | 579g | |
| Transmission Distance | Data Transmission Distance: 250m (Max.) PoE distance upto 250 meters with 10M via Cat.6 |
|
| Port Surge Protection | 6KV | |
| Forwarding Mode | Store-&-Forward | |
| Country of Origin | PRC | |
| Package Contents | ||
| Ethernet Switch | 1U | |
| Power Cord | 1U | |
| QR Code Guide |
1U |
