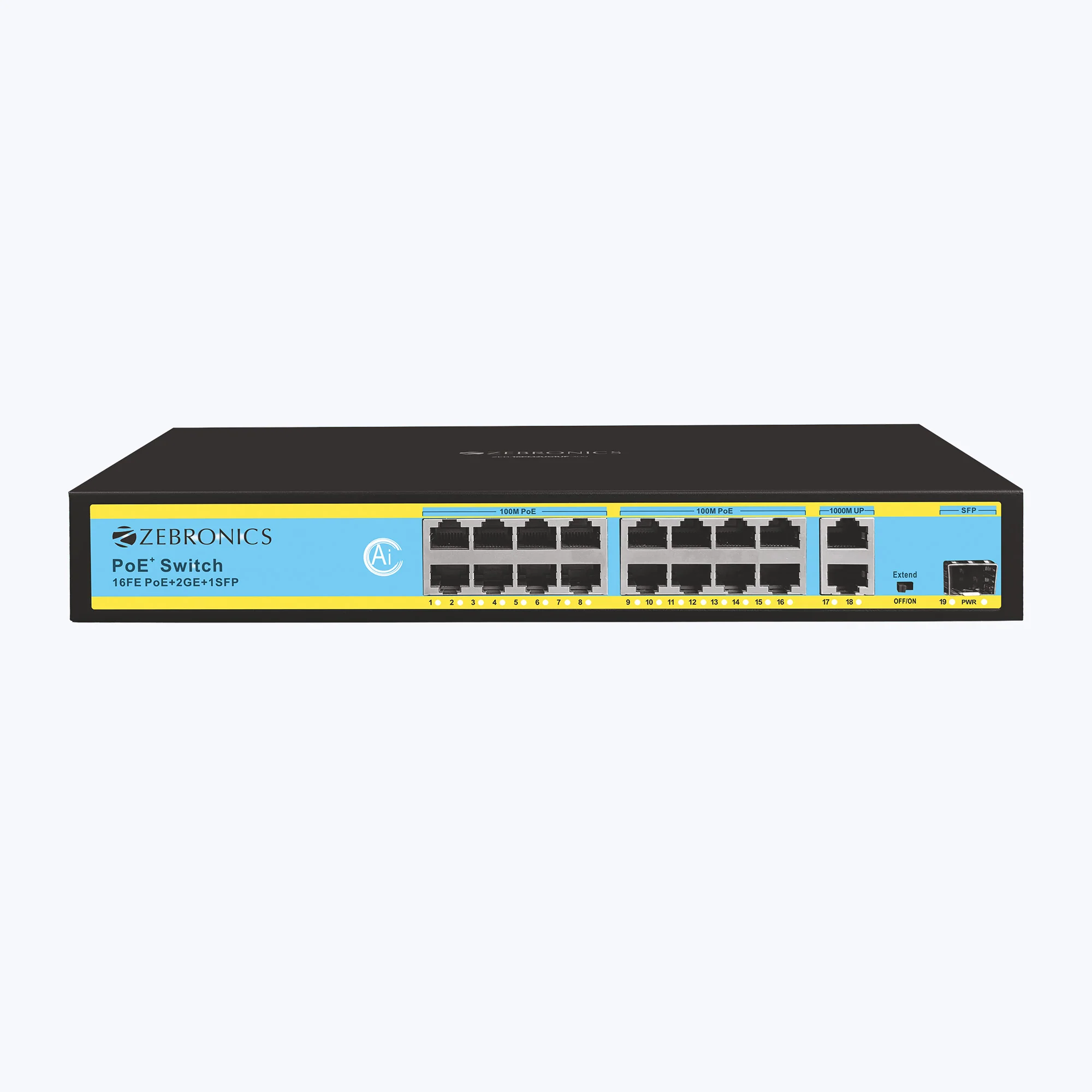

Zeb 16PM2UG1UF 300 - 16 Port POE Switch
Features
| 16 Self Adaptive PoE Ports |
|
| Dual Gigabit Uplink Ports |
|
| 250m Extended Transmission (Max.) |
|
| 300W Output (Max.) |
|
| Upto 30W Per Port |
|
| Full Duplex |
|
| High Data Rate |
|
| Wide Compatibility |
|
| Dynamic Power Control | |
| Short Circuit Protection | |
| Anti Interference Capability | |
| Lightning Protection | |
| SFP Port | |
| AI Watchdog | |
| Mounting Kit |
Specifications
| Connector Type | 16 Ports 10/100M/1000M PoE + 2 Ports 1000M Ethernet Uplink + 1000M SFP Port | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self Adaptive Power Pin Assignment : MODE A [1/2(+), 3/6(-)] |
|
| Network Media | 10BASE-T: Cat 6 UTP (=<250 Meters) 100BASE-TX: Cat6 UTP (=<100 Meters) 1000BASE-TX: Cat6 UTP (=<100 Meters) |
|
| Power Supply |
Input: AC100-240V, 50/60Hz Output: 30W Per Port Power Budget: 300W |
|
| Performance Specification |
Bandwidth: 38Gbps MAC: 8K Packet Buffer Memory: 4Mbits 10M Packet Forwarding Rate: 14880 pps/port 100M Packet Forwarding Rate: 148800 pps/port 1000M Packet Forwarding Rate: 1488000 pps/port |
|
| LED Indicator |
Power (Red): Lit - Powered, Unlit - No Power Ethernet(Green) : Flash - Data Transmit, Unlit - Disconnect |
|
| Working Environment |
Operating Temperature: 10°C ~ 55°C Storage Temperature: 20°C ~ 70°C Operating Humidity: Max 20 ~ 95% (Non-condensation) Storage Humidity: Max 20 ~ 95% (Non-condensation) |
|
| Physical Parameter | Product Dimension W x D x H : 31 x 18.5 x 4.5 cm Package Dimension: (W x D x H) : Net. Weight: 1.71 Kg |
|
| Transmission Distance | Data Transmission Distance: 250m (Max.) PoE distance upto 250 meters with 10M via Cat.6 |
|
| Port Surge Protection | 6KV | |
| Forwarding Mode |
Store and forward |
|
| Country of Origin | PRC | |
| Package Contents | ||
| Ethernet Switch |
1 U | |
| Power Cord |
1 U | |
| QR Code Guide |
1 U |
|
| Mounting Kit | 1 U |
